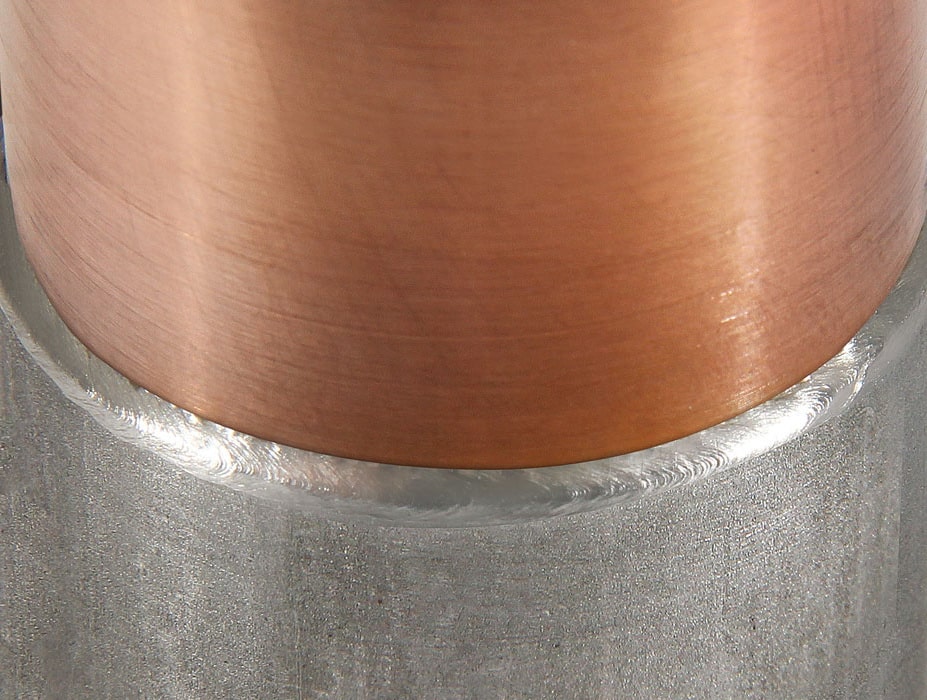

Joining Dissimilar Metals: Techniques, Challenges, and Solutions
Joining dissimilar metals is a critical aspect of many engineering and manufacturing applications. Whether in the automotive, aerospace, or HVAC industries, creating reliable joints between different metals, such as steel and copper or aluminium and stainless steel, requires careful consideration and the right materials. Understanding how to join dissimilar metals is essential for ensuring structural integrity, minimising corrosion, and achieving optimal performance.
In this article, we’ll explore the challenges involved in joining dissimilar metals, the techniques used, and the best practices to achieve strong, long-lasting joints. We’ll also highlight the importance of choosing the right brazing alloys and how CuP Alloys can support your dissimilar metal joining needs.
Why Joining Dissimilar Metals is Challenging
When joining dissimilar metals, engineers and fabricators often face unique challenges due to the differing properties of each metal. These challenges include:
Different Melting Points
Metals like copper and aluminium have significantly different melting points, which can lead to issues during welding or soldering, where one metal may melt or distort before the other.
Thermal Expansion Coefficients
Metals expand and contract at different rates when heated and cooled. If the joint experiences thermal cycling, such as in automotive engines or HVAC systems, stress can build up at the joint, leading to failure over time.
Electrochemical Reactions
Dissimilar metals can react electrochemically when in contact, especially in the presence of an electrolyte (e.g., moisture). This can result in galvanic corrosion, which weakens the joint and reduces its lifespan.
Mechanical Property Mismatches
Metals like steel and aluminium have different hardness, tensile strength, and elasticity, which can affect how the joint behaves under mechanical stress or load.
Addressing these challenges requires selecting the appropriate joining method and filler materials, which can help mitigate the risks and ensure strong, durable connections.
Techniques for Joining Dissimilar Metals
Several techniques are available for joining dissimilar metals, each suited for specific applications and material combinations. Here’s a breakdown of the most effective methods:
1. Brazing
Brazing is one of the most effective techniques for joining dissimilar metals because it involves melting a filler metal, known as a brazing alloy, without melting the base metals. The molten alloy flows into the joint and solidifies, creating a strong metallurgical bond.
Why Use Brazing for Dissimilar Metals?
- Lower Heat Input: Brazing occurs at lower temperatures compared to welding, minimising the risk of melting or distorting the base metals.
- Wide Range of Brazing Alloys: There are many brazing alloys available, such as silver, copper-phosphorus, and nickel-based alloys, which are designed to join different metal combinations.
- Versatile Metal Compatibility: Brazing can successfully join combinations like copper to stainless steel, aluminium to copper, or brass to steel.
2. Soldering
Soldering is similar to brazing but takes place at even lower temperatures, typically below 450°C (842°F). This method is ideal for joining smaller or heat-sensitive parts and is commonly used in electronics and plumbing applications.
Best Applications for Soldering Dissimilar Metals:
- Electrical Components: Soldering is perfect for joining copper and aluminium in electrical circuits due to the low temperatures and conductive properties of the solder.
- Plumbing Systems: Soldering can create leak-proof joints between copper and brass or copper and steel in plumbing applications.
3. Welding
Welding can be used to join dissimilar metals by melting both base metals and using a compatible filler material. However, it’s a more complex process that requires precise control of heat and filler metal selection to avoid issues like thermal stress and cracking.
Choosing the Right Brazing Alloy for Joining Dissimilar Metals
Choosing the appropriate brazing alloy is essential when joining dissimilar metals to ensure a strong, corrosion-resistant, and durable joint. Here’s a look at some commonly used brazing alloys:
1. Silver-Based Brazing Alloys
Silver-based alloys are ideal for joining dissimilar metals like copper and brass, or copper and stainless steel. These alloys offer excellent flow characteristics, making them easy to work with and ensuring complete coverage of the joint.
- Best For: Joining copper to steel or brass to stainless steel.
2. Copper-Phosphorus Alloys
Copper-phosphorus alloys are well suited for the fluxless joining of copper to copper or copper to brass with a separate flux. They’re commonly used in HVAC and plumbing applications where the risk of galvanic corrosion is low.
- Best For: Copper-to-copper or copper-to-brass joints.
3. Nickel-Based Brazing Alloys
Nickel-based alloys provide exceptional resistance to heat and corrosion, making them ideal for high-temperature applications. They’re often used for joining dissimilar metals in the aerospace and automotive industries.
- Best For: High-temperature joints in stainless steel and other high-performance alloys.
4. Aluminium-Based Brazing Alloys
Aluminium brazing alloys are designed for joining aluminium to aluminium or aluminium to copper. These alloys provide strong joints with good corrosion resistance and are widely used in automotive radiators and heat exchangers.
- Best For: Joining aluminium components in automotive and HVAC applications.
Best Practices for Joining Dissimilar Metals
To achieve the best results when joining dissimilar metals, follow these best practices:
- Use the Right Filler Metal: Choose a filler metal that is compatible with both base metals and offers good flow characteristics.
- Appropriate Flux: Use a suitable flux to remove oxides and ensure clean, strong joints, especially when working with metals prone to oxidation like stainless steel or aluminium.
- Minimise Heat Input: Use a technique like brazing, which operates at lower temperatures, to reduce the risk of thermal stress or distortion.
- Prevent Galvanic Corrosion: Apply a protective coating or use insulating materials to prevent direct metal-to-metal contact if the joint will be exposed to moisture or other electrolytes.
