Understanding the Fundamentals of Brazing: Principles, Process, and FAQs
At CuP Alloys, we are committed to providing comprehensive insights into brazing, an essential technique for joining metals in various industries. In this blog, we will delve into the principles of brazing, its fundamentals, the brazing process, and address frequently asked questions to help you gain a deeper understanding of this vital metallurgical process.
Introduction

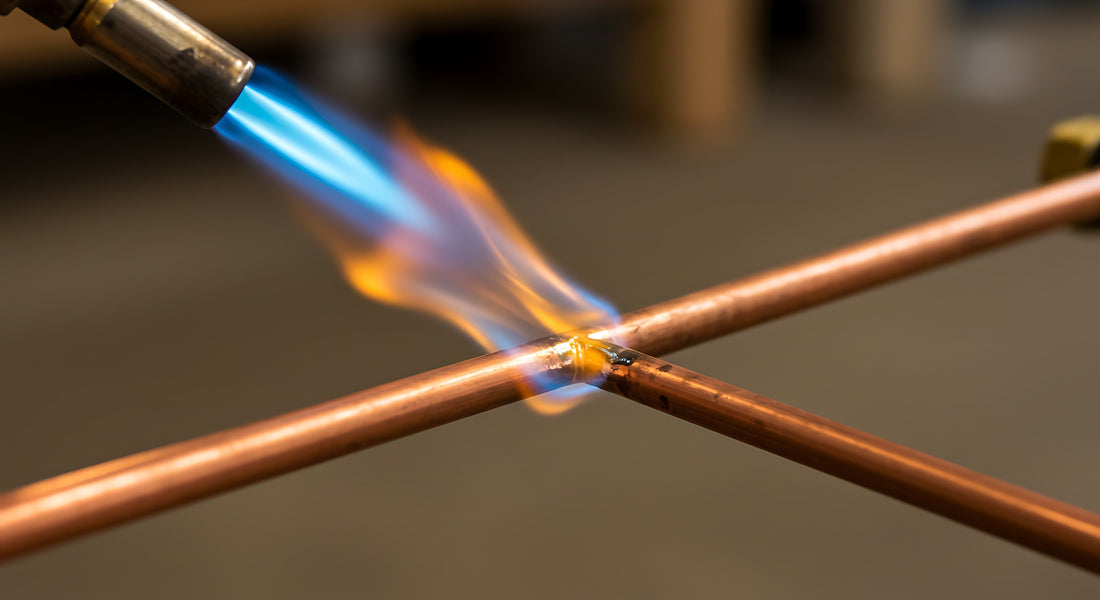

Brazing, often referred to as silver soldering, is a joining process that relies on the principle of capillary action to create strong bonds between metals. It involves melting a filler material (silver solder) into the joint, typically using a torch or induction heating, without melting the base metals. Let’s explore the principles and fundamentals of brazing in detail.
Exploring the History of Brazing
Brazing boasts a remarkably long history, stretching back an impressive 5,000 years. Evidence suggests its use in Sumeria as early as 3000 BC. Over time, the technique spread across the globe, reaching a peak of excellence in ancient Egypt. Today, brazing finds applications in countless industries, from intricate jewellery making to large-scale manufacturing.
Brazing Explained: Key Concepts and Distinctions
What is Brazing?
Brazing is a metal joining process that utilises a filler metal with a melting point exceeding 450°C (840°F) but lower than the melting point of the base metals being joined. This molten filler metal flows into the precisely fitting joint between the parts due to capillary action, solidifying to create a strong permanent bond.
Brazing vs. Soldering: Understanding the Difference
The key distinction lies in the melting point of the filler metal. In soldering, the filler metal melts below 450°C (840°F), resulting in a weaker bond compared to brazing.
Brazing vs. Welding: Highlighting the Advantages
Welding involves melting the base metals to form the joint. In brazing, only the filler metal melts, offering several advantages, including the ability to join dissimilar metals and minimising distortion of the base material.
Principles of Brazing
Brazing relies on several key principles to achieve successful joints:
Capillary Action
The molten filler metal is drawn into the joint by capillary action, ensuring intimate contact between the mating surfaces.
Metallurgical Bonding
During cooling, the molten filler metal solidifies, forming a metallurgical bond with the base metals.
Surface Preparation
Proper cleaning and fluxing of the joint surfaces are essential to remove oxides and contaminants, promoting wetting and flow of the filler metal.
Temperature Control
Brazing requires precise control of temperature to melt the filler metal without overheating the base metals, ensuring a strong joint without compromising their properties.
Brazing Process Fundamentals
The brazing process typically involves the following steps:
Surface Preparation
Clean the mating surfaces to remove oxides, grease, and other contaminants.
Flux Application
Apply flux to the joint area to prevent oxidation and promote wetting of the filler metal.
Assembly
Fit the parts together tightly, ensuring proper alignment and fit.

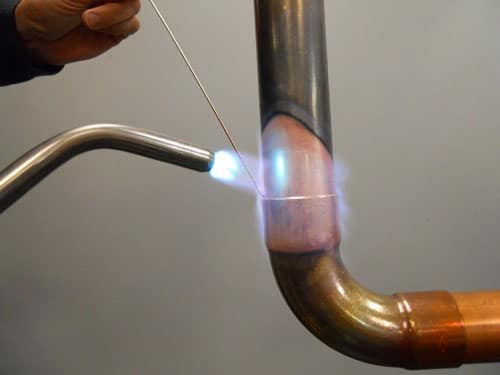

Heating
Apply heat gradually to melt the filler metal, allowing it to flow into the joint by capillary action.
Cooling
Allow the joint to cool naturally, forming a strong metallurgical bond between the metals.
Solidus, Liquidus, and Working Temperature Explained
Solidus
The temperature at which the brazing alloy begins to melt.
Liquidus
The temperature at which the brazing alloy becomes entirely molten.
Working Temperature
The temperature range within the melting range where the brazing alloy possesses sufficient fluidity for capillary flow to occur. This is typically above the solidus but below the liquidus.
Capillary Action: The Driving Force Behind Strong Brazing Joints
Capillary action is essential in brazing. It draws the molten filler metal into the joint, displacing any flux or gases, ensuring a strong and complete bond. The success of capillary action hinges on the ability of the filler metal to “wet” the base metals. Surface cleanliness is paramount for optimal wetting.
The Crucial Role of Flux in Brazing
Flux plays a vital role in brazing. It cleans and protects the base metal surfaces during the process, facilitating wetting and flow of the brazing alloy. Choosing the right flux for your specific brazing application and base metals is essential.
Principles of Soldering and Brazing
While soldering and brazing share some similarities, they differ in terms of temperature and filler materials used. Soldering typically operates at lower temperatures (<840°F) and uses lower-melting-point filler metals, whereas brazing involves higher temperatures and stronger filler metals like silver solder.
Frequently Asked Questions
Can you braze without flux?
In some instances, brazing can be performed without flux. However, using the proper flux significantly improves joint quality and consistency.
What temperature is used to braze?
The brazing temperature depends on the chosen brazing alloy and the base metals. It typically falls within the working temperature range of the alloy.
Is brazing hotter than soldering?
Yes, brazing uses higher temperatures than soldering due to the higher melting point of the brazing filler metal.
Conclusion
Understanding the principles and fundamentals of brazing is essential for achieving high-quality joints in various industries. For expert advice on choosing the right brazing alloys, fluxes, and tools for your specific needs, don’t hesitate to contact CuP Alloys, your one-stop shop for all things brazing!
