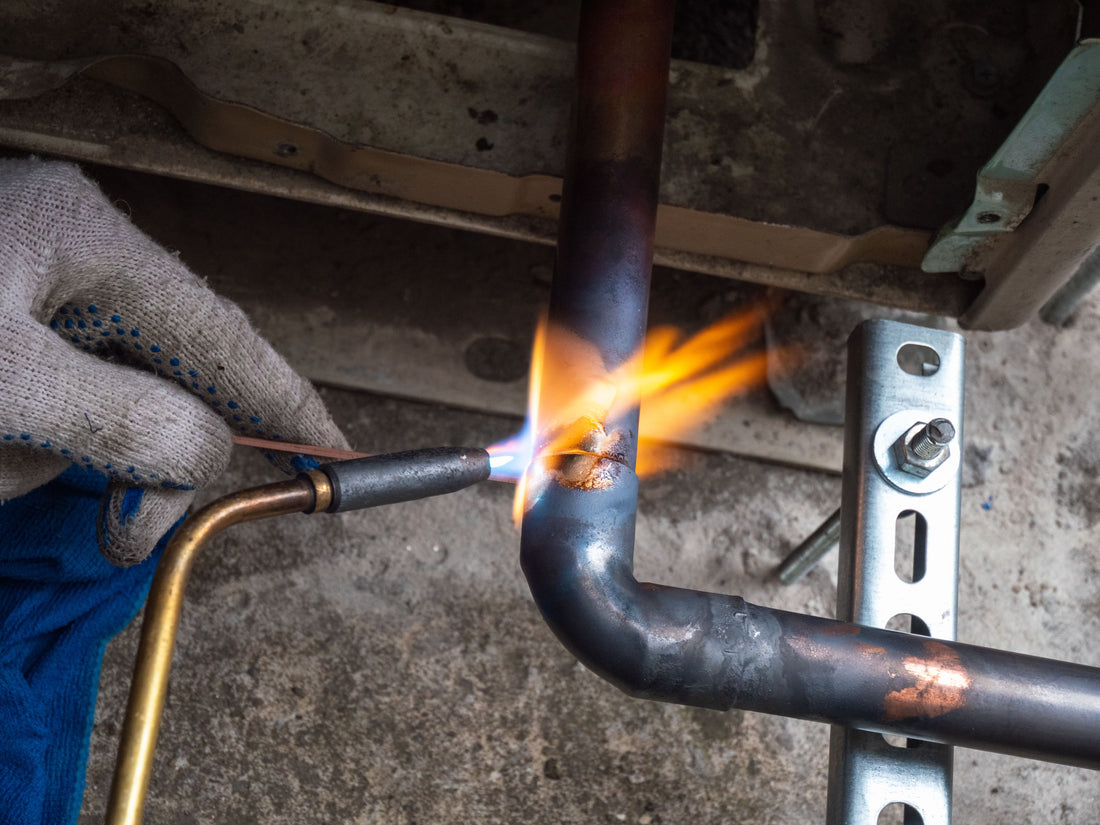

Understanding Step Brazing

What Is Step Brazing and Why Does It Matter?

When a single assembly requires multiple brazed joints, a straightforward approach — heating everything at once and applying the same filler metal throughout — might not work. Remelting an earlier joint while trying to complete a later one risks compromising the entire assembly.

Step brazing solves this. It is a sequential joining technique that uses a series of filler metals, each with a progressively lower melting temperature, to build up multiple joints on a single component without disturbing the work already done. Each step uses a lower melting alloy than the last, which means that by the time you're working on joint three, joints one and two remain solidly intact.

All brazing alloys have a liquidus temperature — the point at which they become fully molten — and a solidus temperature, below which they are completely solid. If you apply the same alloy to multiple joints and reheat the assembly, every joint already made is at risk of remelting, shifting, or voiding. For simple single-joint assemblies this isn't a concern, but many real-world components in refrigeration, HVAC, automotive, aerospace, and precision engineering require two, three, or more brazed joints on one assembly. In these situations, step brazing is often the only reliable way to achieve the result you need.

How Does Step Brazing Work?

The principle is straightforward, even if the execution requires care and planning.

Step 1 — First joint, highest temperature alloy.

You begin with the filler metal that has the highest melting point in your sequence. This joint is brazed as normal and the assembly is allowed to cool.

Step 2 — Second joint, mid-range alloy.

You move to the next joint, using a filler metal whose liquidus temperature sits meaningfully below that of the first alloy. When heated to the temperature required for this second alloy, the first joint remains well below its own melting point and stays intact.

Step 3 — Subsequent joints, progressively lower alloys.

This continues for as many joints as the assembly requires, stepping down through the melting range with each successive filler metal.

The critical variable is the temperature differential between each alloy in the sequence. There needs to be sufficient margin — typically at least 30–50C between the liquidus of one alloy and the solidus of the previous one — to ensure safety. Too close and you risk remelting. Too large and you may struggle to find suitable alloys or introduce unnecessary thermal stress.

What Alloys Are Used in Step Brazing?

Step brazing sequences are typically built from silver brazing alloys, which are available across a wide working temperature range. At CuP Alloys, we stock alloys spanning from below 635C right through to above 850C, giving engineers and fabricators considerable flexibility in constructing a suitable step sequence. A common three-step sequence might look something like this:

First joint — a high-silver alloy such as a 18% or 24% silver grade, with a flow temperature in the region of 750-850C, providing a strong, ductile joint.

Second joint — a mid-range alloy such as a 40% or 45% silver grade, flowing at around 640–720C, selected to sit below the solidus of the first alloy with adequate margin.

Third joint — a lower-temperature alloy, 55% silver grade or a cadmium-free alternative, with a flow point around 630–660C.

The exact sequence will depend on your specific alloys, base metals, joint design, and application environment. If you're unsure where to start, our team at CuP Alloys are happy to help you build a step sequence suited to your project.

What Are the Key Advantages of Step Brazing?

It enables complex, multi-joint assemblies.

Step brazing makes it possible to produce assemblies that would otherwise be impractical. Components with intricate joint designs can be brazed confidently, knowing the previous joints will remain intact.

It preserves the integrity of earlier joints.

Because each successive step operates at a lower temperature, previously completed joints are never approached closely enough to be at risk. This gives confidence in the structural integrity of the finished assembly as a whole.

It allows dissimilar metals to be joined at appropriate temperatures.

Many assemblies involve materials with different thermal tolerances — copper, brass, stainless steel, and lower-melting-point components may all need to coexist within one piece. Step brazing allows each joint to be made at a temperature appropriate to the metals involved at that stage.

It supports precise heat treatment sequences.

Some applications require specific metallurgical conditions at particular joints. Step brazing, with its disciplined use of temperature, lends itself well to these requirements.

What Are the Challenges of Step Brazing?

Step brazing, like all other brazing operations, rewards careful planning and penalises shortcuts. The main challenges to be aware of are:

Alloy selection and sequencing

Choosing the right filler metals, in the right order, with the right temperature margins, is the foundation of a successful step brazing process. If your margins are too tight, joints can be compromised. This requires knowledge of your alloys' full melting ranges — not just a nominal flow temperature.

Heat management

As you work through successive joints, you need to control where heat is applied and ensure that earlier joints are not inadvertently brought close to their solidus temperature. Good torch technique, appropriate fixturing, and the use of heat sinks where necessary all become more important with each additional step.

Flux and cleaning

Different alloys may require different flux grades. Flux residues from each step should be thoroughly cleaned — ideally by quenching in warm water and brushing clean — before proceeding to the next. Contamination between steps can compromise joint quality.

Joint design

Close-fitting joints with appropriate clearance for capillary flow are important in any brazing application, but become even more critical in step brazing where there is less room for error.

Common Applications of Step Brazing

Step brazing is used wherever multi-joint assemblies are required and reliability is non-negotiable. Typical applications include:

Refrigeration and HVAC systems — complex copper pipework assemblies with multiple connection points where leak-proof joints throughout are essential.

Automotive components — fuel system assemblies, heat exchangers, and precision fluid-handling parts where multiple joints must perform reliably under sustained thermal and mechanical stress.

Aerospace and precision engineering — components where both joint integrity and tight dimensional tolerances are critical.

Model engineering and instrument manufacture — intricate assemblies in brass, copper, and silver where multiple joints are needed in close proximity without risk of disturbing the preceding work.

Frequently Asked Questions About Step Brazing

How many steps can a step brazing sequence include?

In principle, as many as the alloy range allows. In practice, most step brazing sequences involve two or three steps. Beyond that, finding alloys with sufficient temperature separation becomes increasingly difficult, and the process demands greater skill and more sophisticated heat management.

Can I use the same flux throughout all steps?

Not necessarily. Different alloys may be optimally used with different flux grades. Always check the flux recommendations for each alloy in your sequence. If in doubt, contact us and we can advise on compatible flux pairings.

Is step brazing suitable for stainless steel?

Yes, with appropriate alloy selection. Silver brazing alloys perform well on stainless steel, and a step sequence can be built around these. Flux selection is particularly important with stainless steel due to the tenacious oxide layer it forms on heating.

Where can I get advice on choosing alloys for step brazing?

From us. CuP Alloys has been supplying brazing alloys and technical support to engineers across the UK for over 40 years. Whether you're planning a new assembly or troubleshooting an existing process, our team can help you select the right alloys and build a reliable step sequence. Don’t hesitate to contact us.

Summary

Step brazing is a practical, well-established technique that opens up a wider range of assembly possibilities — particularly where multiple joints are needed on a single component and reliability cannot be compromised.

Getting it right comes down to choosing the correct alloys in the right sequence, maintaining adequate temperature margins between each step, and applying the same care and preparation that good brazing practice always demands.

If you're working on a multi-joint assembly and want to talk through your options, our team is happy to help. We stock a wide range of silver brazing alloys across the full temperature spectrum, and with over 40 years of experience behind us, we've supported engineers and fabricators through plenty of step brazing challenges.
